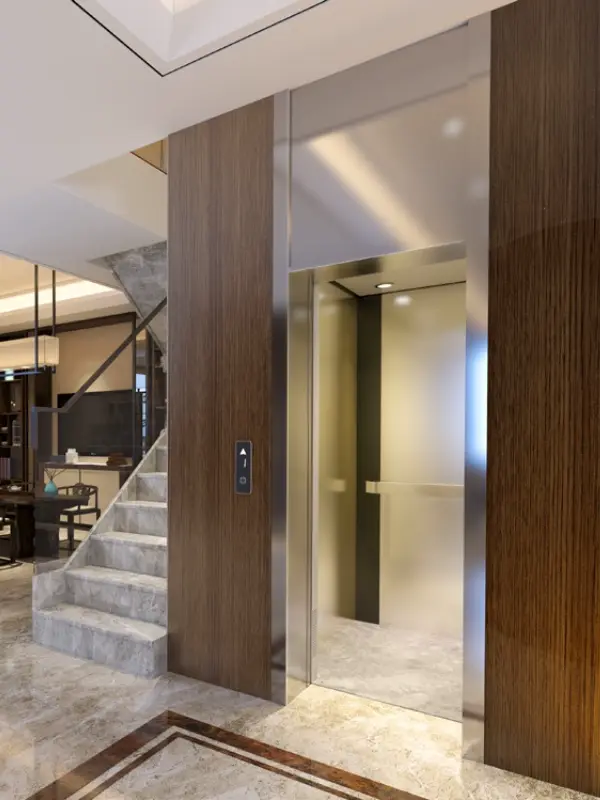

Una Series: Safe and Comfortable Home Elevators

Does your old elevator turn your home into a noisy, stressful space? Are you tired of constant repairs and safety worries? The Una Series Home Elevators use advanced steel belt drive technology to offer a quiet, durable, and safe ride. With features like one-key self-rescue and emergency leveling, Una brings modern comfort and peace of mind to every family.

More detailed advantages.

Basic Specifications

Rated Load	[kg]	260/320/400
Passenger Capacity	Person	3/4/5
Rated Speed	[m/s]	≤0.4
Reference Standard		GB/T 21739-2008
Lifting Height	[m]	≤18
Number of Stops		2-6
Car Entrance/Exit		1/2 (Optional Through Entrance)
Traction Ratio		2:1
Main Power Supply		220V±7%/380V±7% (Selectable)
Pit Depth	[mm]	≥230
Overhead	[mm]	≥Car Height + 650 and ≥Door Height + 750
Shaft Width	[mm]	≥Car Width + 400 (Center Opening Doors)
Shaft Depth	[mm]	≥Car Depth + 250 (Center Opening Doors)
Minimum Floor Height	[mm]	≥Door Height + 500
Beam Spacing	[mm]	≤2500
Aluminum Shaft		Optional (Customizable)
Door Width	[mm]	600-800 (50mm increments)
Door Height	[mm]	1900-2400 (50mm increments)

Technical Specifications

Rated Load (kg)	Speed (m/s)	Car Net Width (mm)	Car Net Depth (mm)	Shaft Width (min) (mm)	Shaft Depth (min) (mm)	Door Width (mm)	Door Type	Overhead OH (mm)	Pit Depth PD (mm)
260	0.4	800	900	1260	1200	600	Side Opening	Car height +650	≧200+ car floor decoration height
		900	900	1360	1200	700	Side Opening
320	0.4	900	1000	1360	1300	700	Side Opening
		1000	900	1460/1560	1200/1150	700	Side/Center Opening
		900	1100	1360	1400	700	Side Opening
		1100	900	1640	1150	700	Center Opening
		1000	1000	1600/1740	1200/1150	800	Side/Center Opening
		1000	1000	1560	1250	700	Center Opening
		1000	1000	1500	1300	800	Side Opening
400	0.4	900	1200	1360	1500	700	Side Opening
		1200	900	1700	1150	700	Center Opening
		1200	900	1700/1800	1200/1150	800	Side/Center Opening
		1000	1100	1460/1560	1400/1350	700	Side/Center Opening
		1100	1000	1500	1400	800	Side Opening
		1100	1000	1640	1250	700	Center Opening
		1100	1000	1600/1740	1300/1250	800	Side/Center Opening
		1100	1000	1460/1560	1500/1450	700	Side/Center Opening
		1100	1200	1460	1500	800	Side Opening
		1100	1200	1610/1560	1450/1500	700	Center/Side Opening
		1100	1200	1750/1560	1450/1500	800	Center/Side Opening
		1100	1300	1610/1560	1550/1600	700	Center/Side Opening
		1100	1300	1750/1560	1550/1600	800	Center/Side Opening
		1200	1200	1660/1660	1450/1500	700	Center/Side Opening
		1200	1300	1760/1660	1450/1500	800	Center/Side Opening
		1200	1300	1660/1660	1550/1600	700	Center/Side Opening
		1200	1300	1760/1660	1550/1600	800	Center/Side Opening

How to assure lift decoration is match to your home?

Step1: Choose the car decoration type. (Ref: Part 1)
Step2: Choose the car ceiling design.(Ref: Part 2)
Step3: Choose the COP &LOP. (Ref: Part 3)
Step4: Choose the handrail design. (Ref: Part 4)
Step5: Choose the floor design. (Ref: Part 5)

Part 1: Car Design

1. Standard

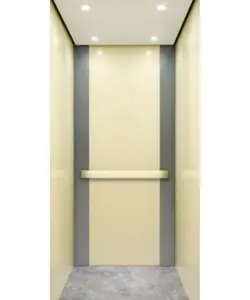

Xiangrui

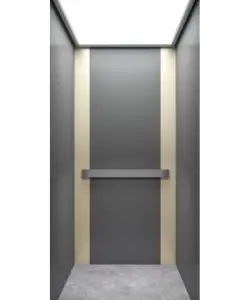

Huarui

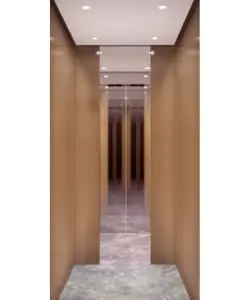

Jinrui

2. Option

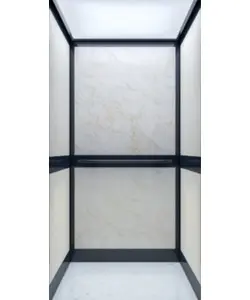

Weilan

Huihuang

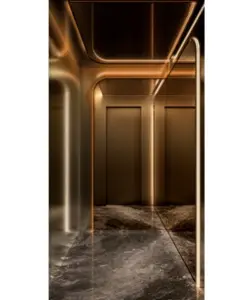

Liujin

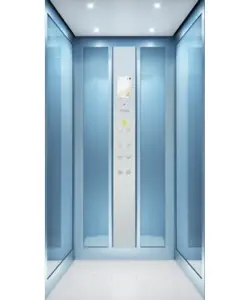

Lanyue

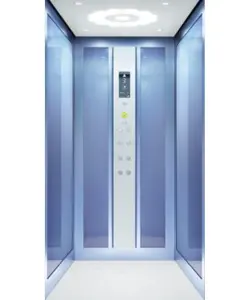

Xinyue

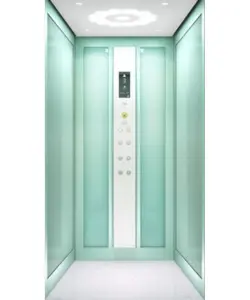

Zhenyue

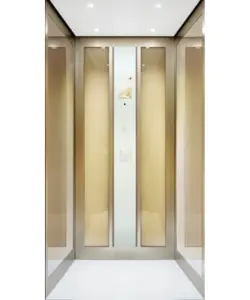

Xiangyue

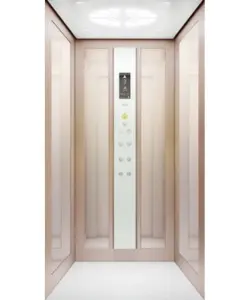

Heyue

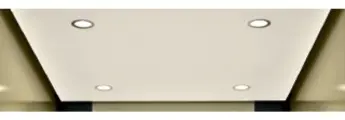

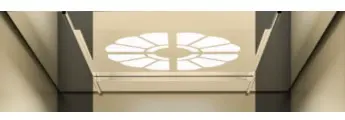

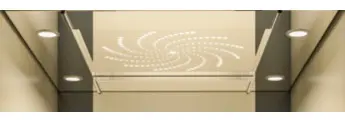

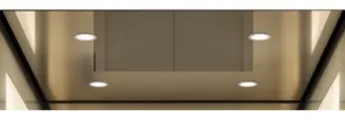

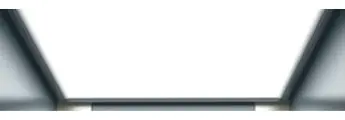

Part 2: Car Ceiling

1. Standard

2. Option

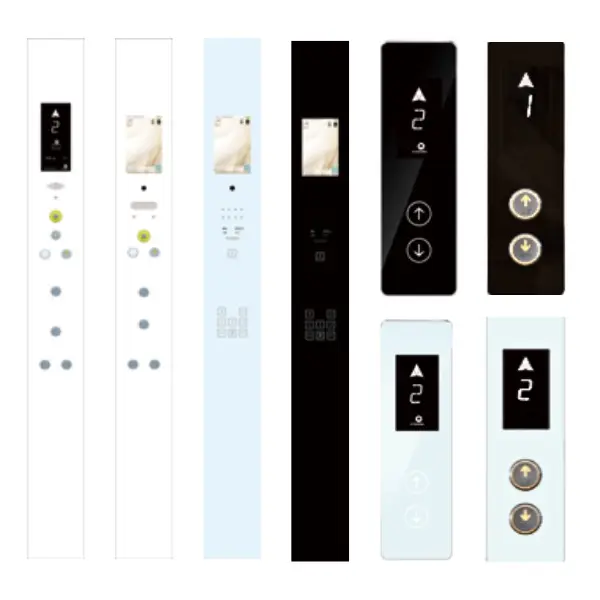

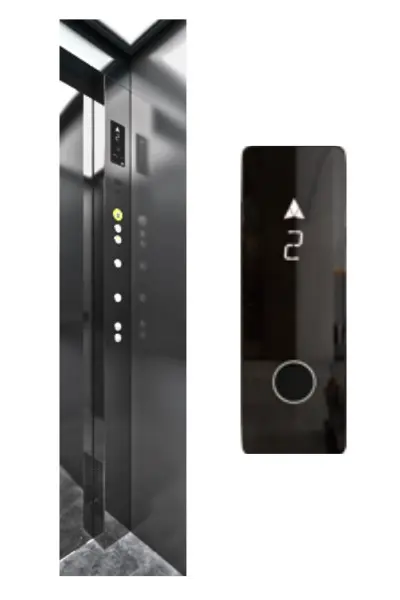

Part 3: COP &LOP

Standard

Option

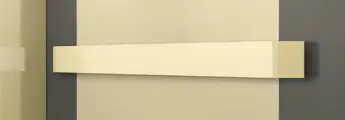

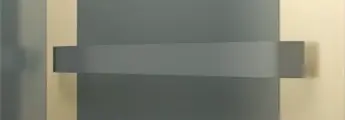

Part 4: Car Handrail Design

Part 5: Car floor

Standard

Option

Elevator factory pre-installed video

Order

Custom Elevator With Easy

At L J Elevator, We turn complex Into Simple! Follow the following three steps to start today!

01. Tell Us What You Need

Please provide us with as specific your needs as possible, and share your thoughts.

02. Get Solution & Quote

We will determine the best solution based on the requirements you provide and provide a specific quote within 24 hours.

03. Approve for Start Production

Upon your approval and a 30% deposit, we will begin production and take care of shipping.
